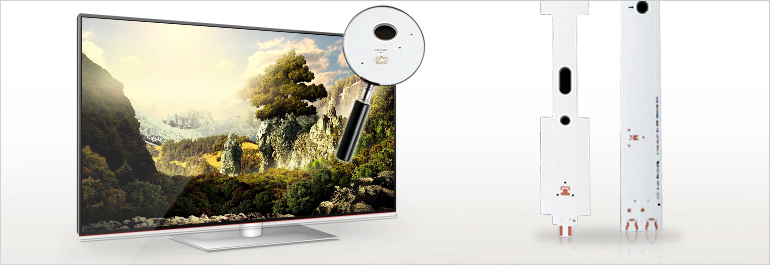

TV BLU is the enlargement of LED TV and we have applied Single/Double side of PCBs Slim(width less than 20mm), Long axis (larger than 1,000mm).

specification

Base Material CEM-3 , FR-4
No. of Layers 1 ~ 2 L
Board Thickness 32 ~ 40 [mil] 0.8 ~ 1.0 [mm]
Max. Boase Size 1,200 * 15 [mm]
Min. Pattern Width 4 [mil] 100 [㎛]
Min. Pattern Space 4 [mil] 100 [㎛]
Min. Drill Size 12 [mil] 0.3 [mm]
Surface Treatment OSP
